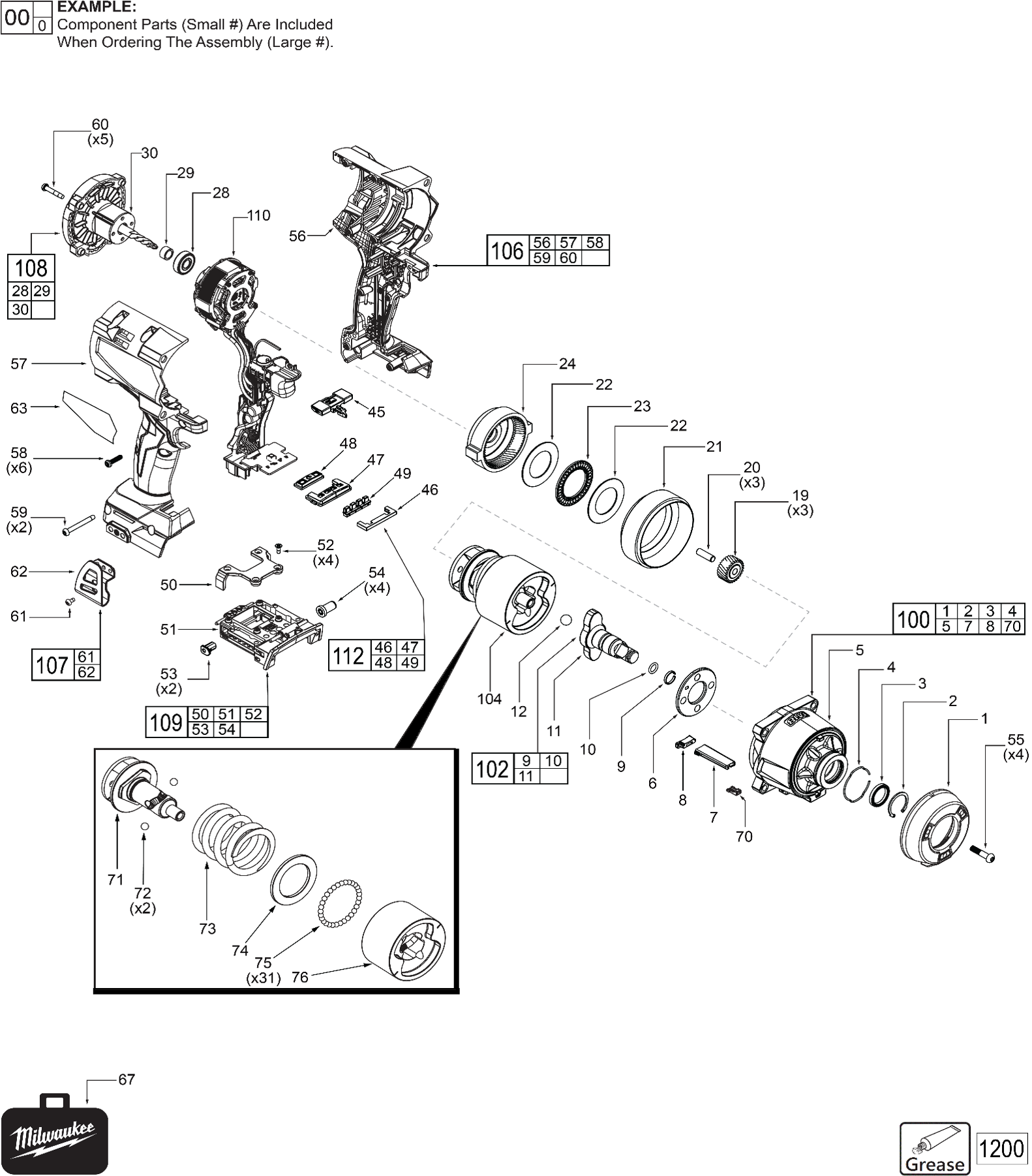

Danh mục phụ tùng Mã model :

M18 FHIW2F12

Di chuyển để xem chi tiết được phóng to
(tránh chạm vào hình để kéo trang)

Kéo xuống để xem thêm danh sách
(Kéo sang trái phải để xem đầy đủ thông tin)

Số phụ tùng	Mã phụ tùng	Tên phụ tùng
6	546524001	ANVIL WASHER
9	691983001	RING, FRICTION\4140 STEEL
10	570698001	O-RING
12	683166001	STEEL BALL 10.0MM
19	610448072	PLANET GEAR
20	671565038	PLANET GEAR PIN 6.0MM
21	567598001	RUBBER SEAL
22	674485007	THRUST WASHER
23	682593001	THRUST NEEDLE BEARING
24	610449092	RING GEAR
28	682493001	BEARING
29	684523001	ROTOR SHAFT BUSHING
45	546523001	FORWARD/REVERSE SHUTTLE
46	566715001	SPEED SELECT BOARD, RUBBER
47	370247001	MODE SELECTOR
48	546546001	MODE SELECT BUTTON
49	546526001	LIGHT PIPE, MODE SELECT
50	551196001	BRACKET
51	551195001	ISOLATOR
52	660204004	M3 X 8MM FLAT HD. ST SCREW
53	567485001	RUBBER SLUG
54	567676001	RUBBER BUMPER
55	663283002	M5 X 23MM PAN HD. TORX T-25 M SCREW
58	660024018	M4 X 16MM PAN HD. TORX T-20 ST SCREW
59	660436008	M4 X 35MM PAN HD. TORX T-20 ST SCREW
60	661947002	M4 X 22MM PAN HD. TORX T-20 ST SCREW
61	661082003	#6-32 PAN HD. TORX T-15 SLOT B M SCREW
62	634138001	BELT HOOK
71	671488191	FR Camshaft
72	683165001	Steel Ball 6.6MM
73	693164123	FR Hammer Spring
74	674485008	FR Hammer Washer 3.0mm
75	683170001	Steel Ball 4.5MM
76	671486140	1/2" FR Hammer
100	204696018	FRONT GEARCASE ASSEMBLY
102	204606022	ANVIL ASSEMBLY
104	204594006	HAMMER AND CAMSHAFT SERVICE ASS'Y FR VERSION
106	204696024	HANDLE KIT
107	204897001	BELT KIT
108	208310013	ROTOR ASSEMBLY
109	204726033	ISOLATOR KIT
110	208696006	ELECTRONICS ASSEMBLY
112	204593003	MODE SELECTOR KIT
